Getting Started With Your Periphio Atlas Gaming PC

This guide will help you get set up, connect your devices, and start gaming.

Periphio Atlas Gaming PC Startup Video

For a quick overview of setting up your Periphio Atlas Gaming PC, watch this video.

For more instructions, view the rest of this guide below.

Step 1. Unbox Your Gaming PC Unbox & Check Your Items

Let's make sure you have everything!

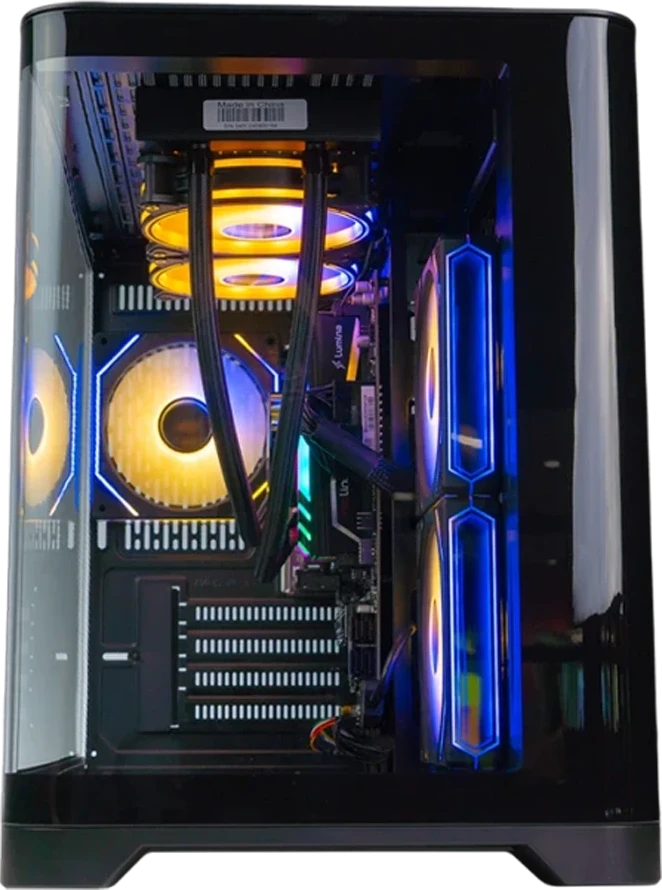

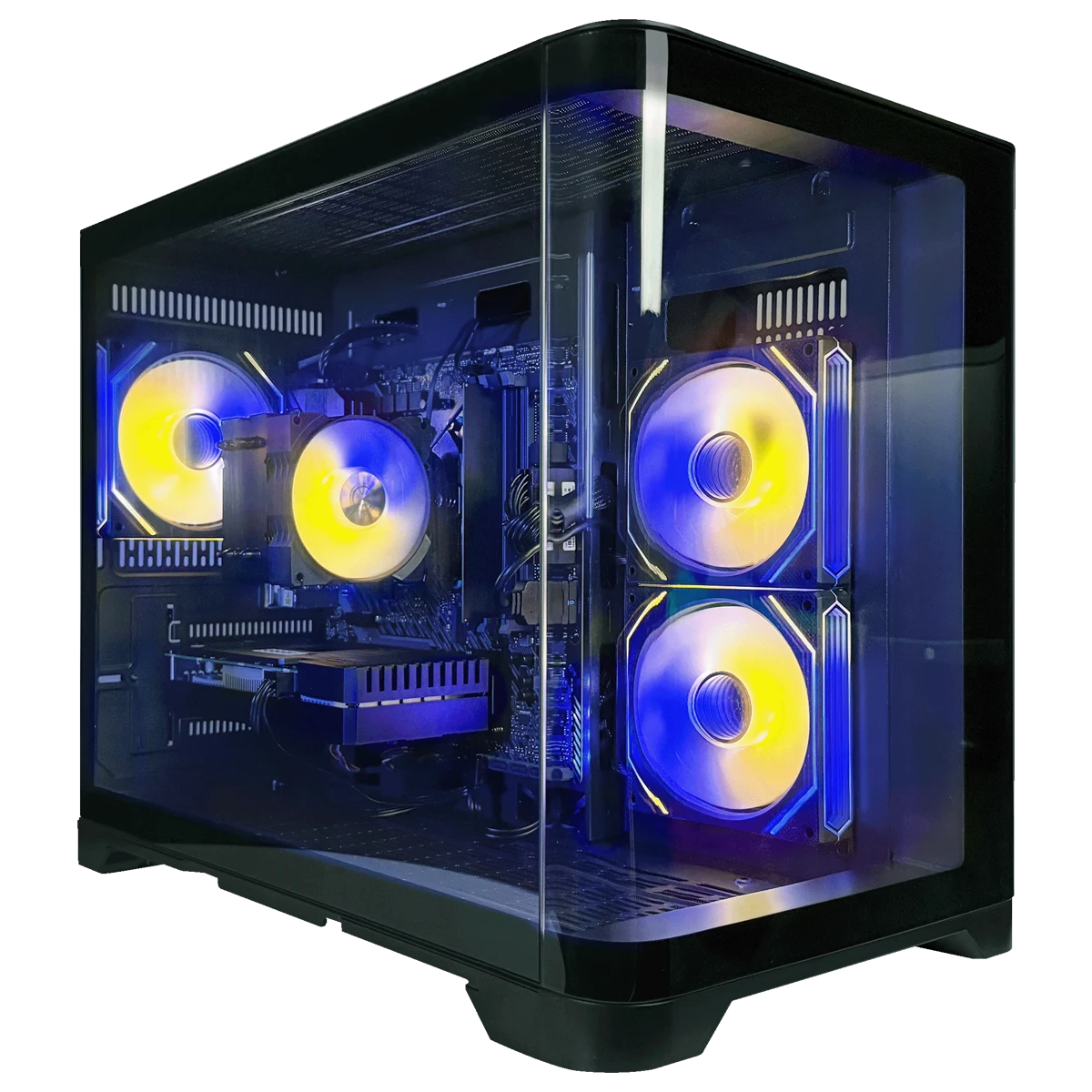

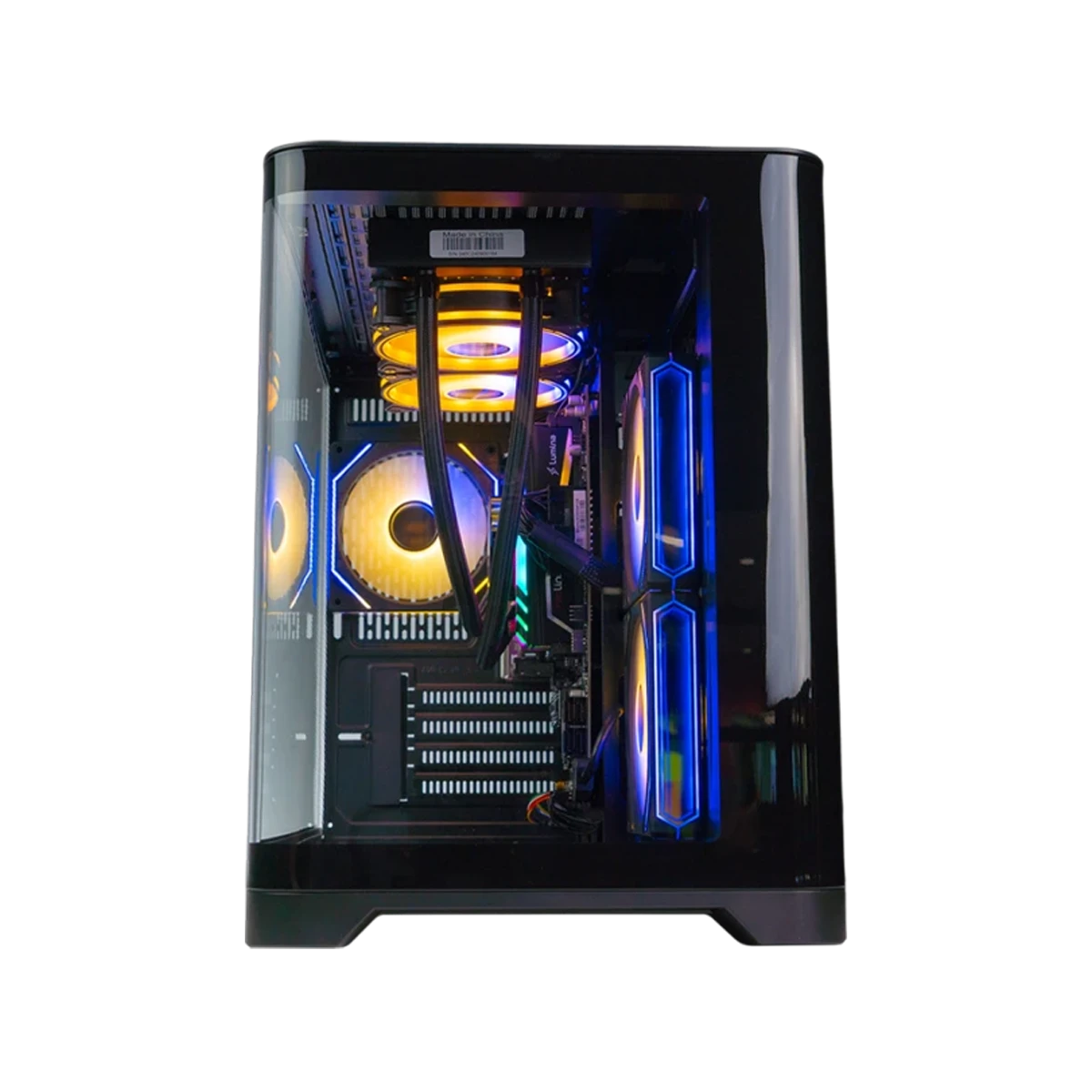

Desktop PC & Power Cable

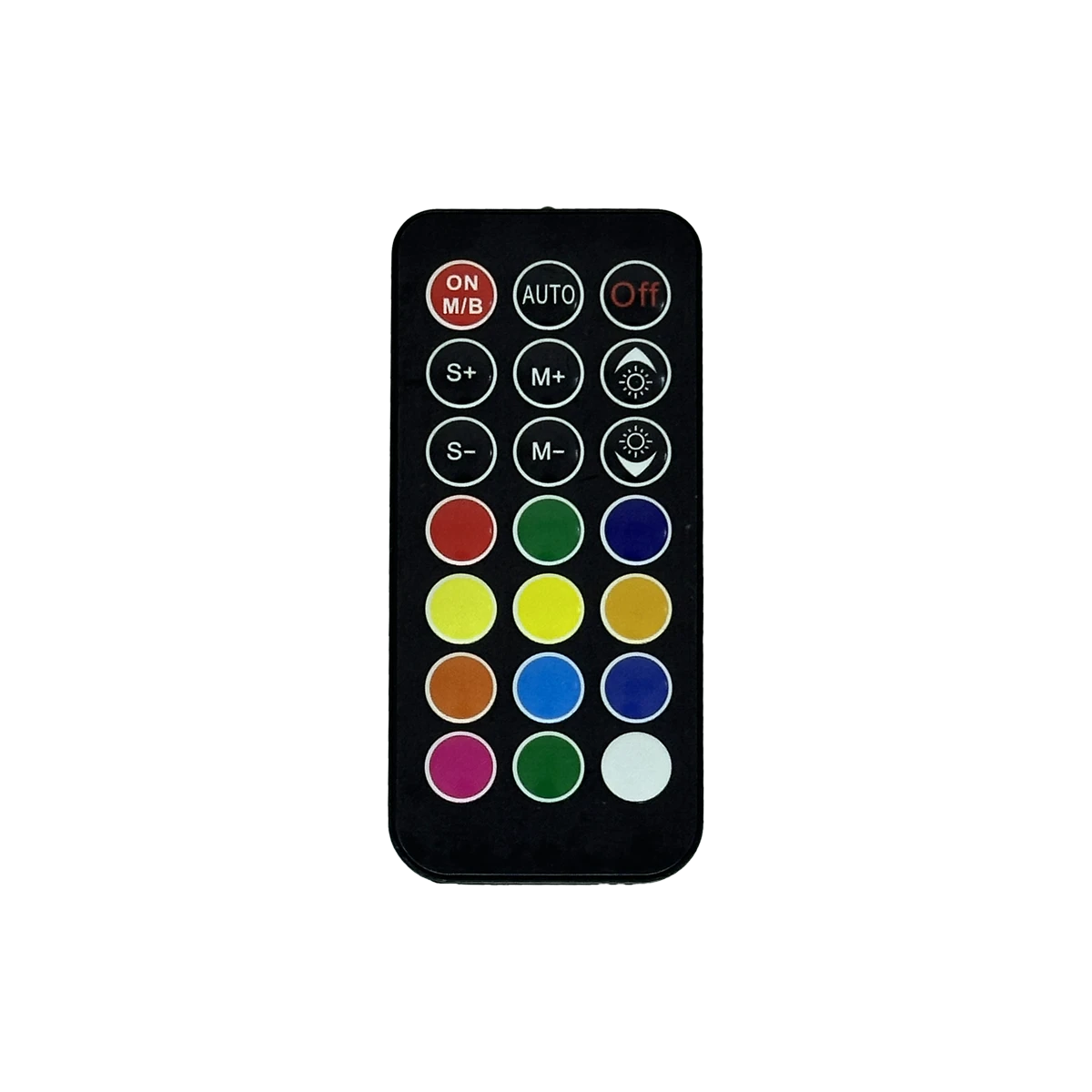

RGB Remote

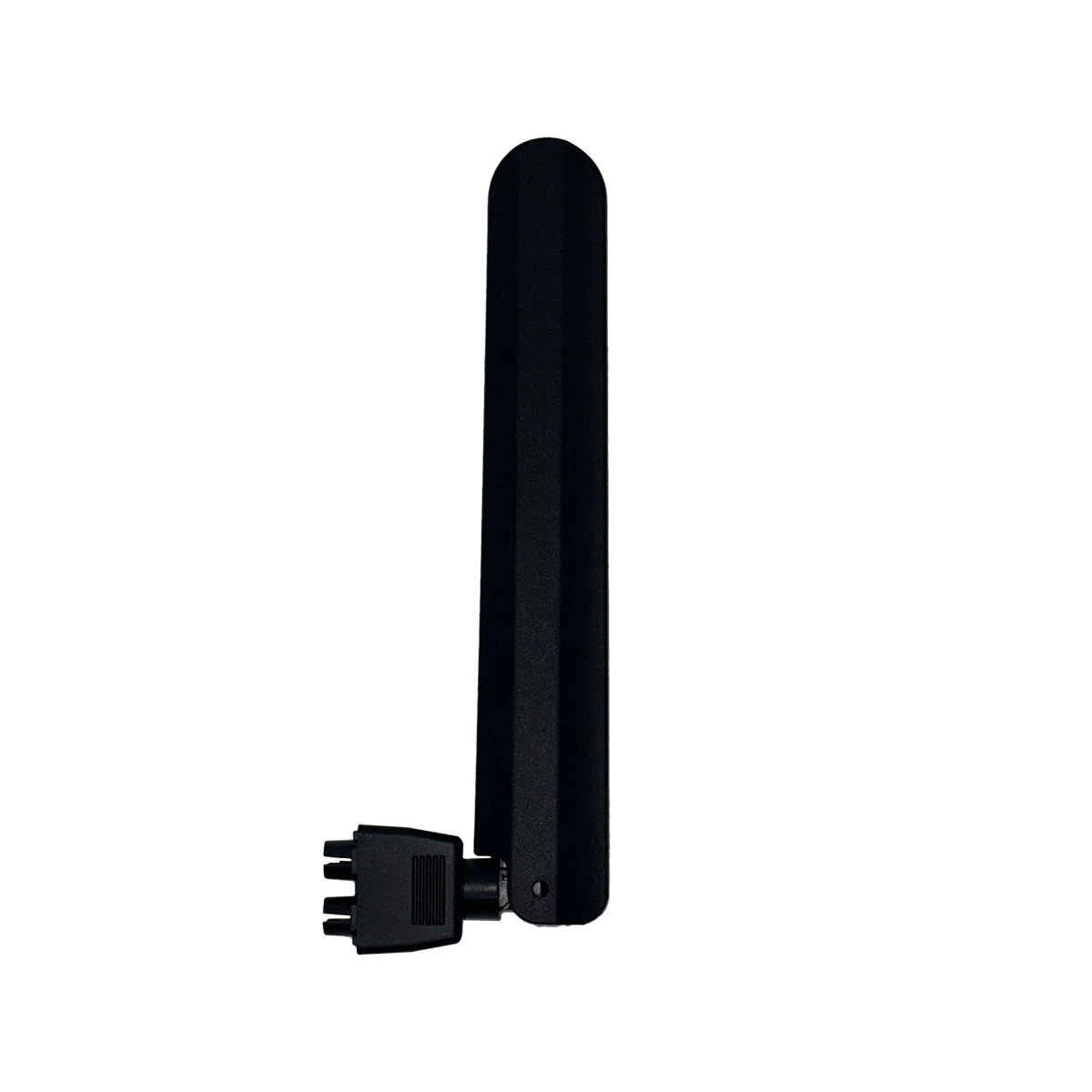

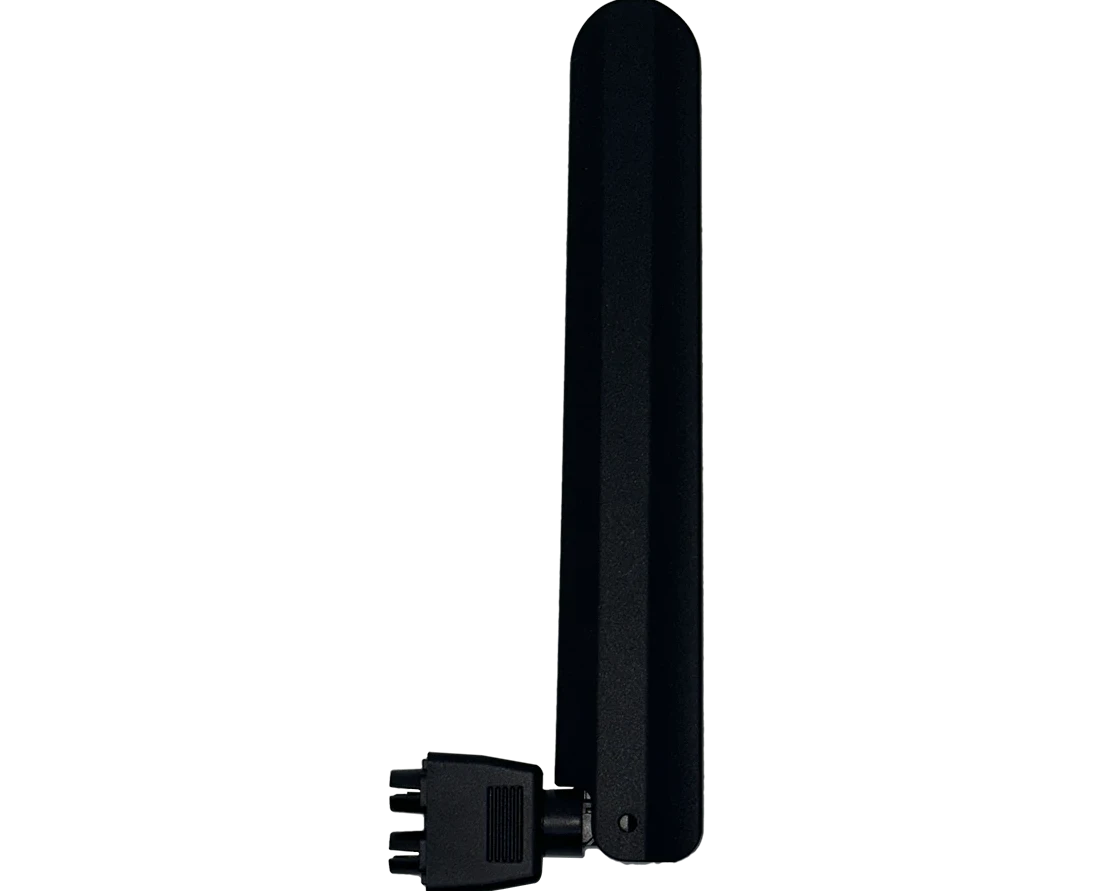

WiFi Adapter

If you did not purchase the Periphio Atlas Gaming PC Bundle, these are the accessories you are going to need:

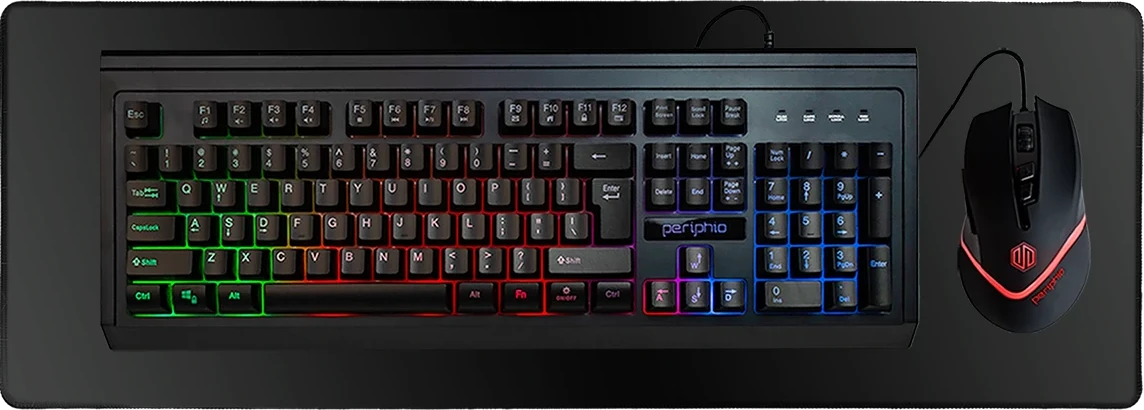

Periphio RGB Keyboard, Mouse, and Gaming Mat

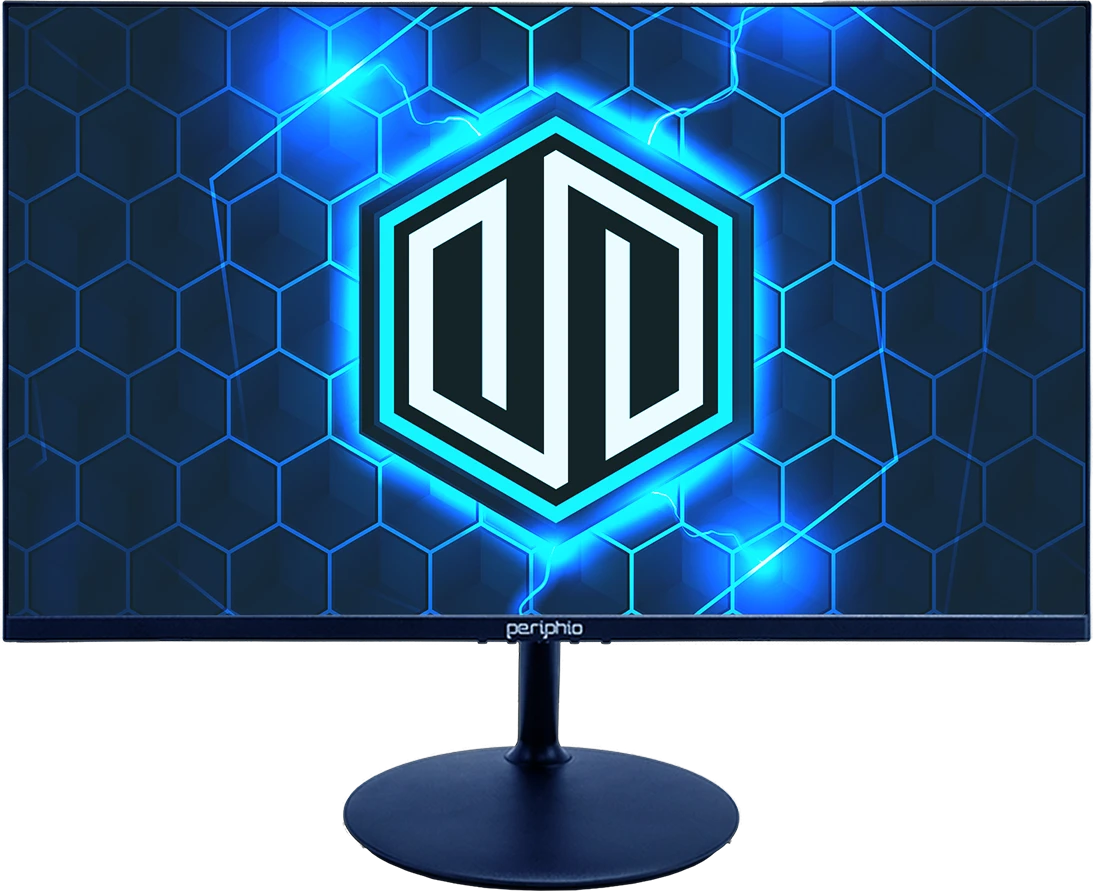

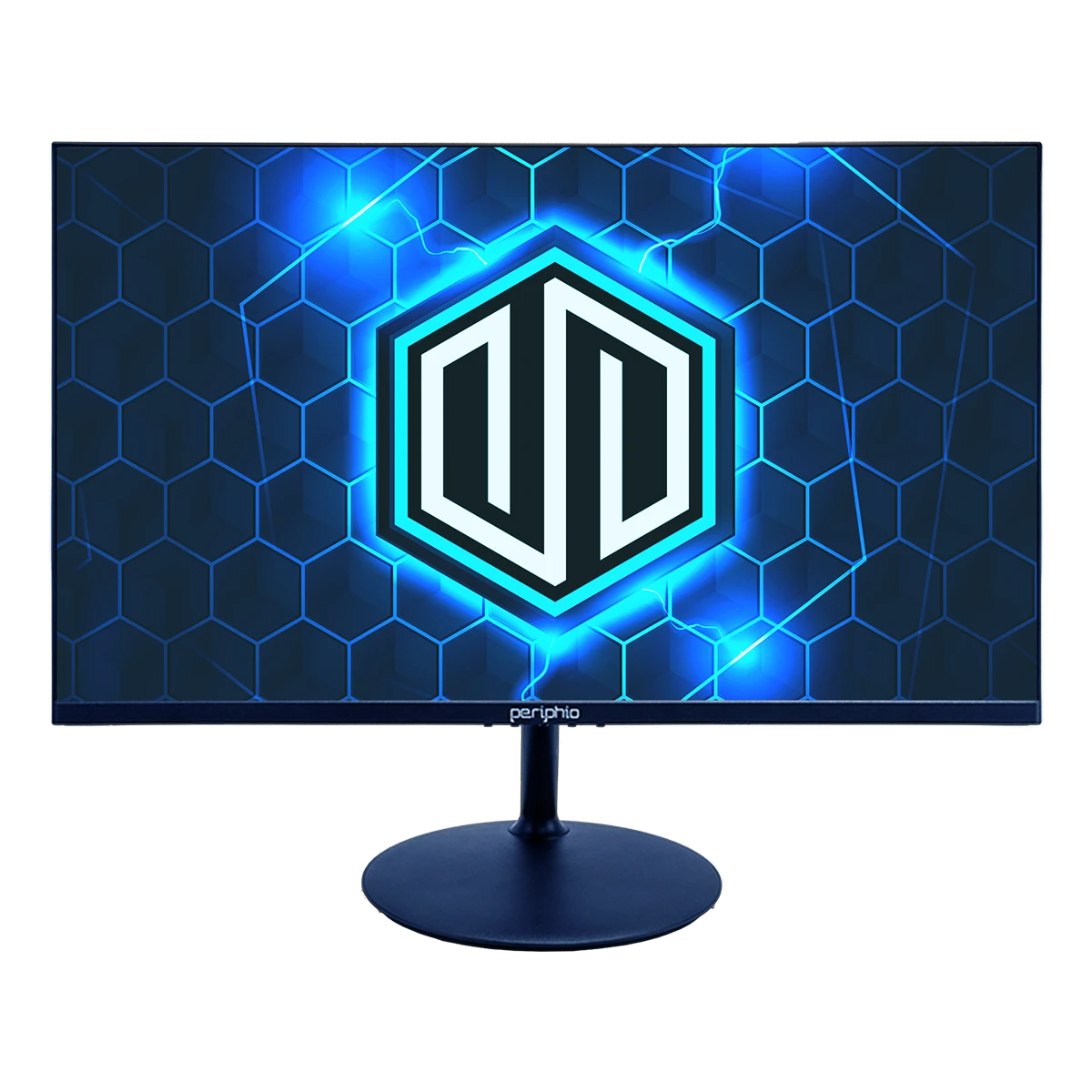

Monitor

Recommended Size: 24 Inches

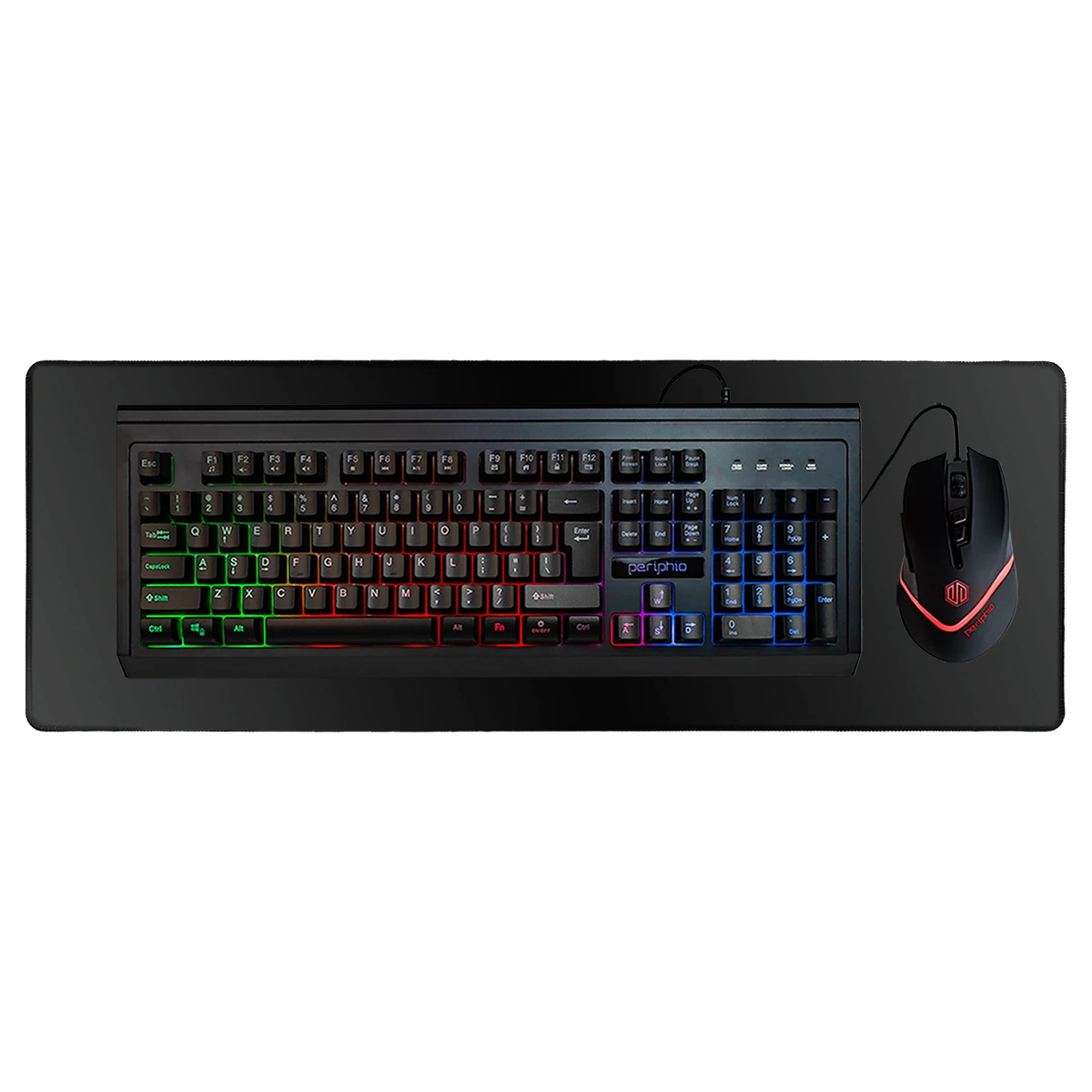

Periphio RGB Keyboard, Mouse, and XXL Gaming Mat

Keyboard, Mouse, & Mat

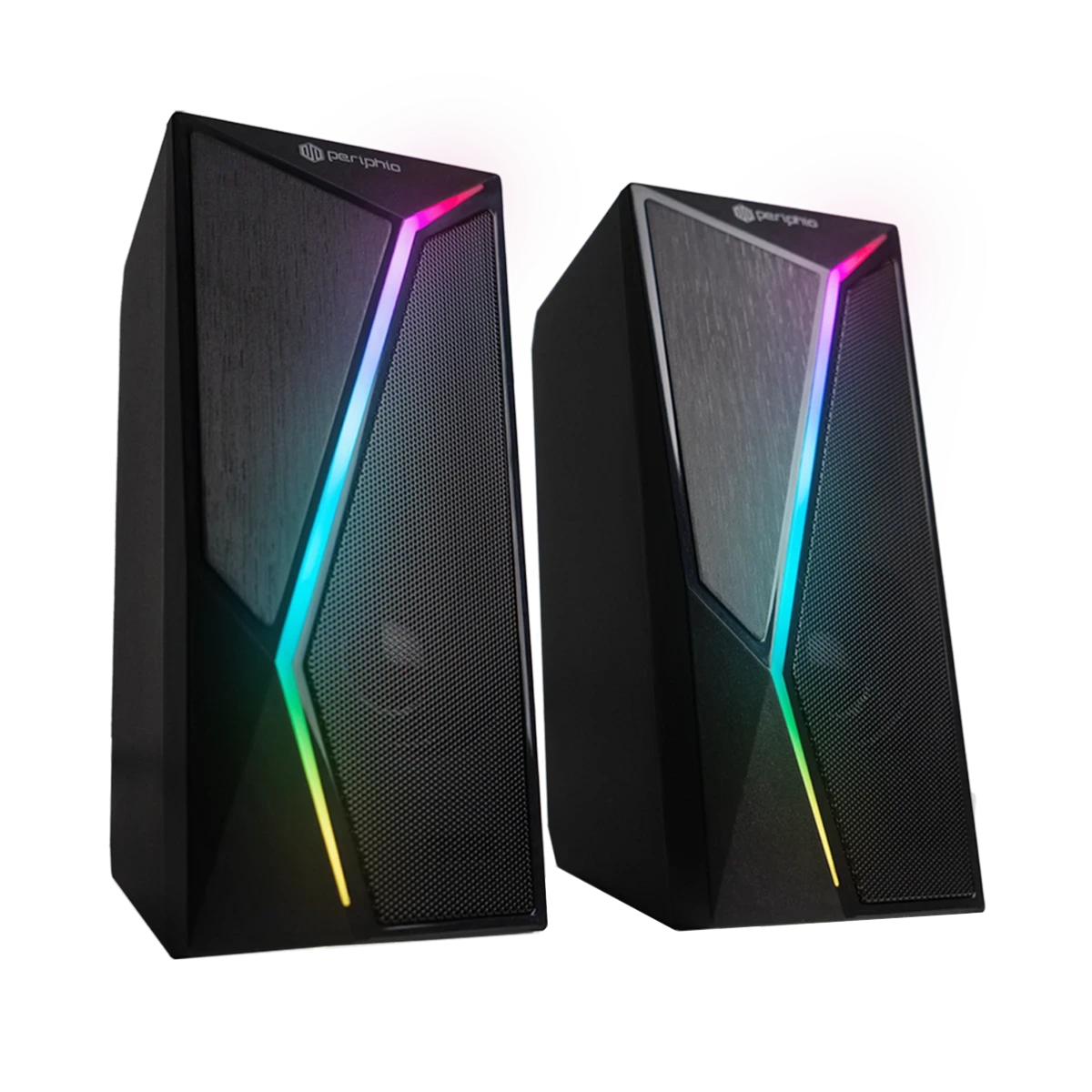

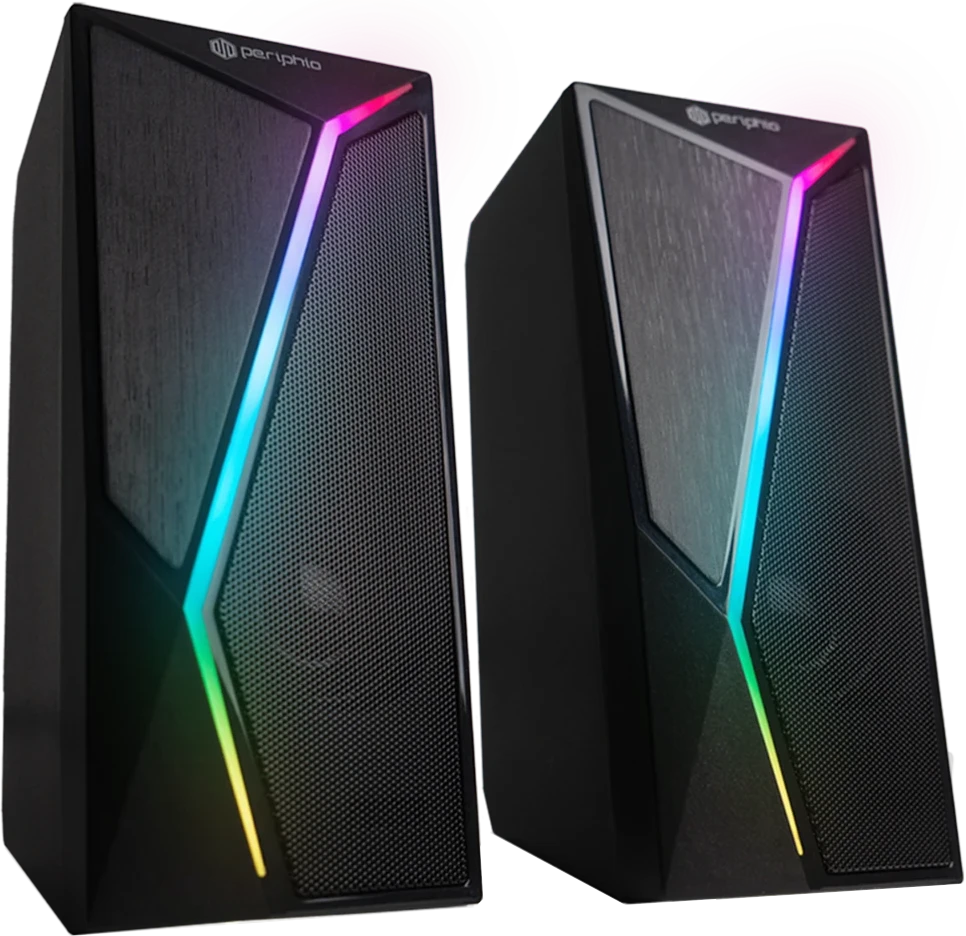

Speakers

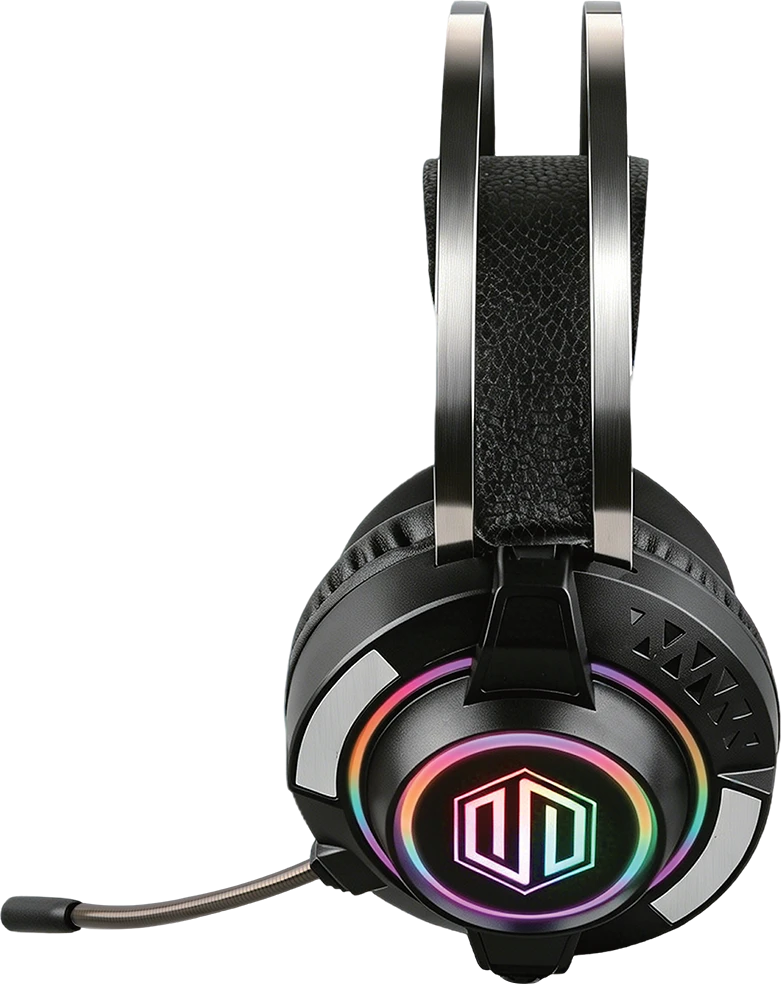

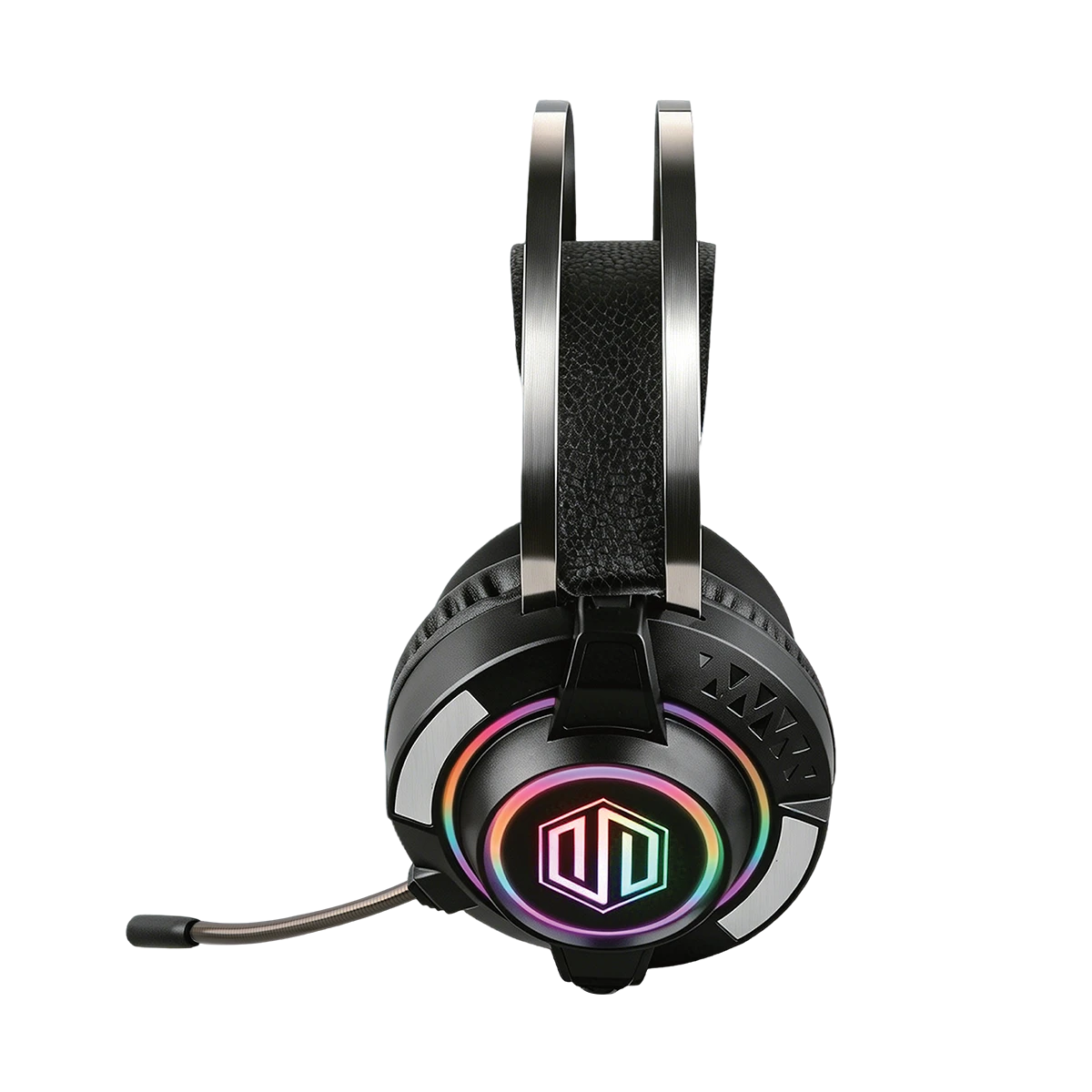

Headset

Step 2. Connect the Accessories

Let's get everything you need for your Atlas Gaming PC connected.

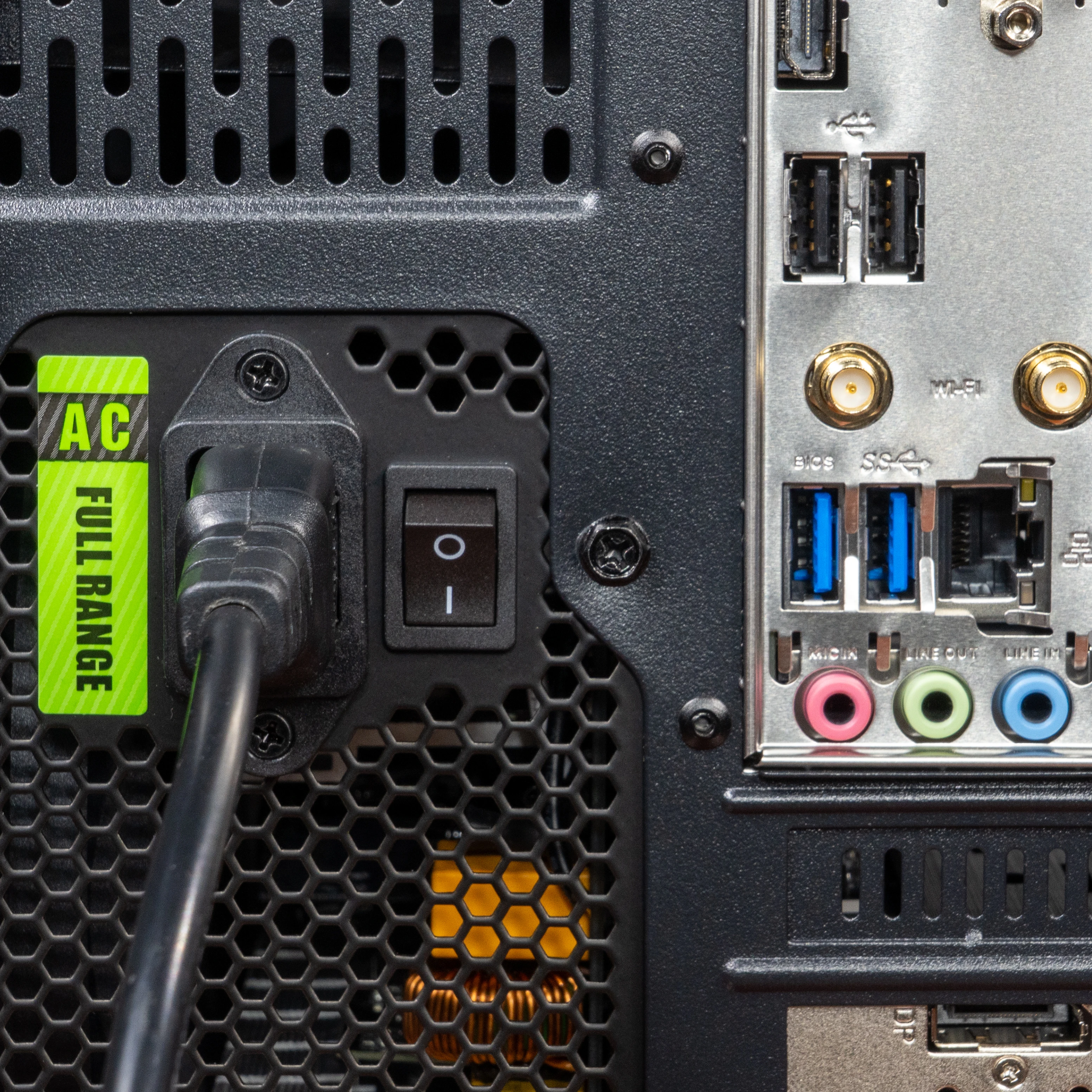

1. Connect the AC Power cable and flip the I/O switch to I.

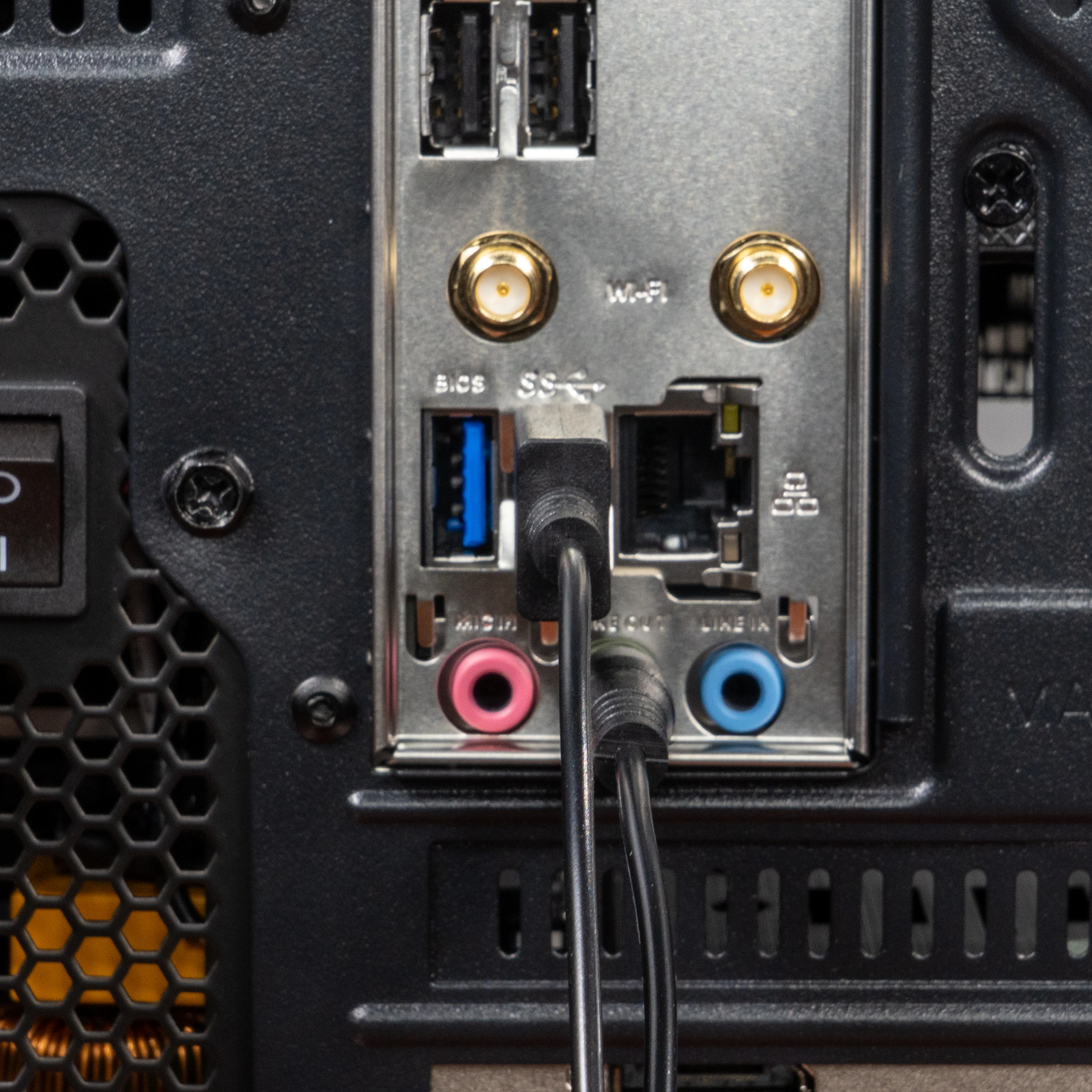

Periphio Atlas USB 3.2 Ports and Audio/Video Ports

2. Plug the speaker's USB cable into the lower blue USB 3.2 ports and it's aux cable into the green Audio/Video port.

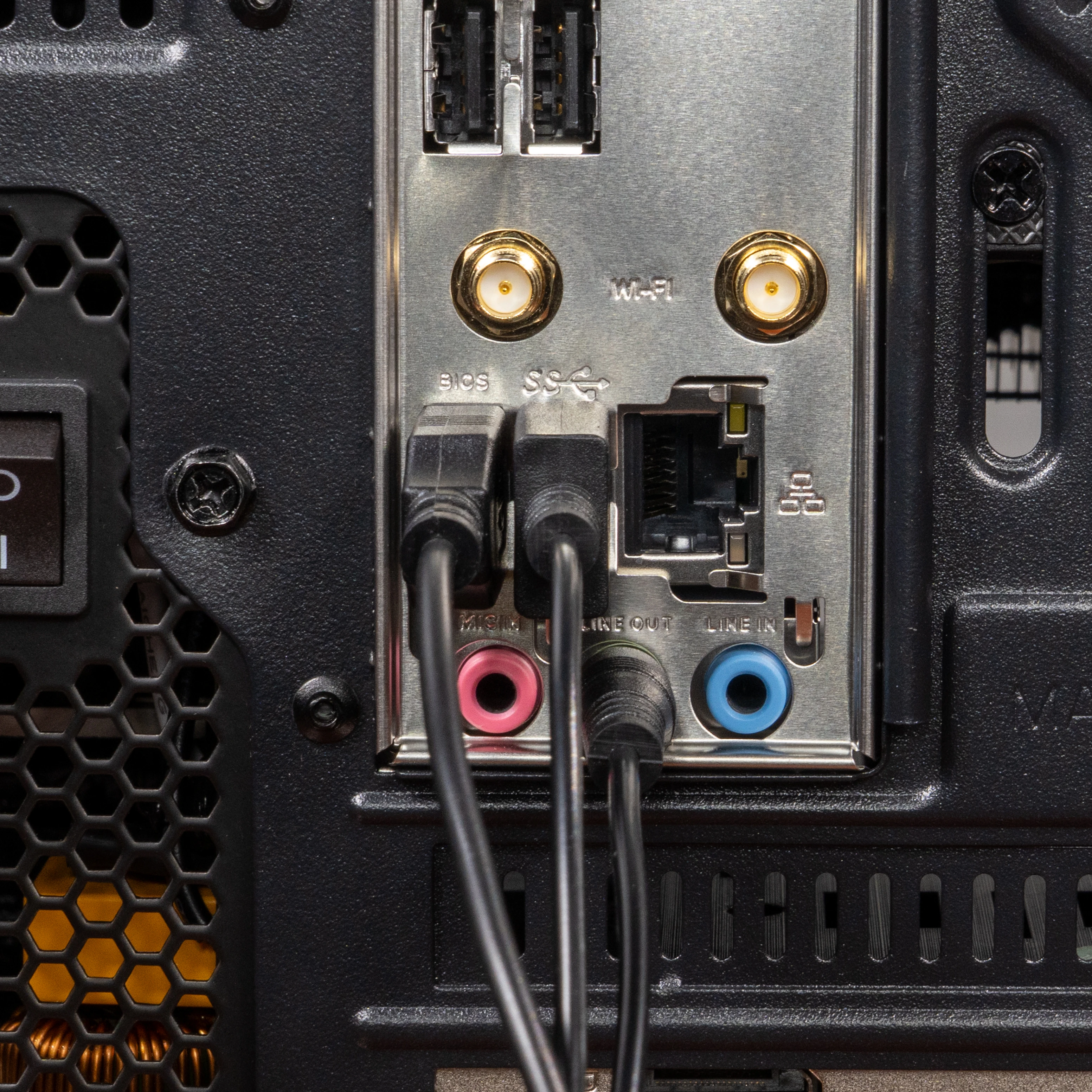

Periphio Atlas USB 3.2 Ports & Audio/Video Ports

3. Plug in the keyboard's USB cable next to the speaker's.

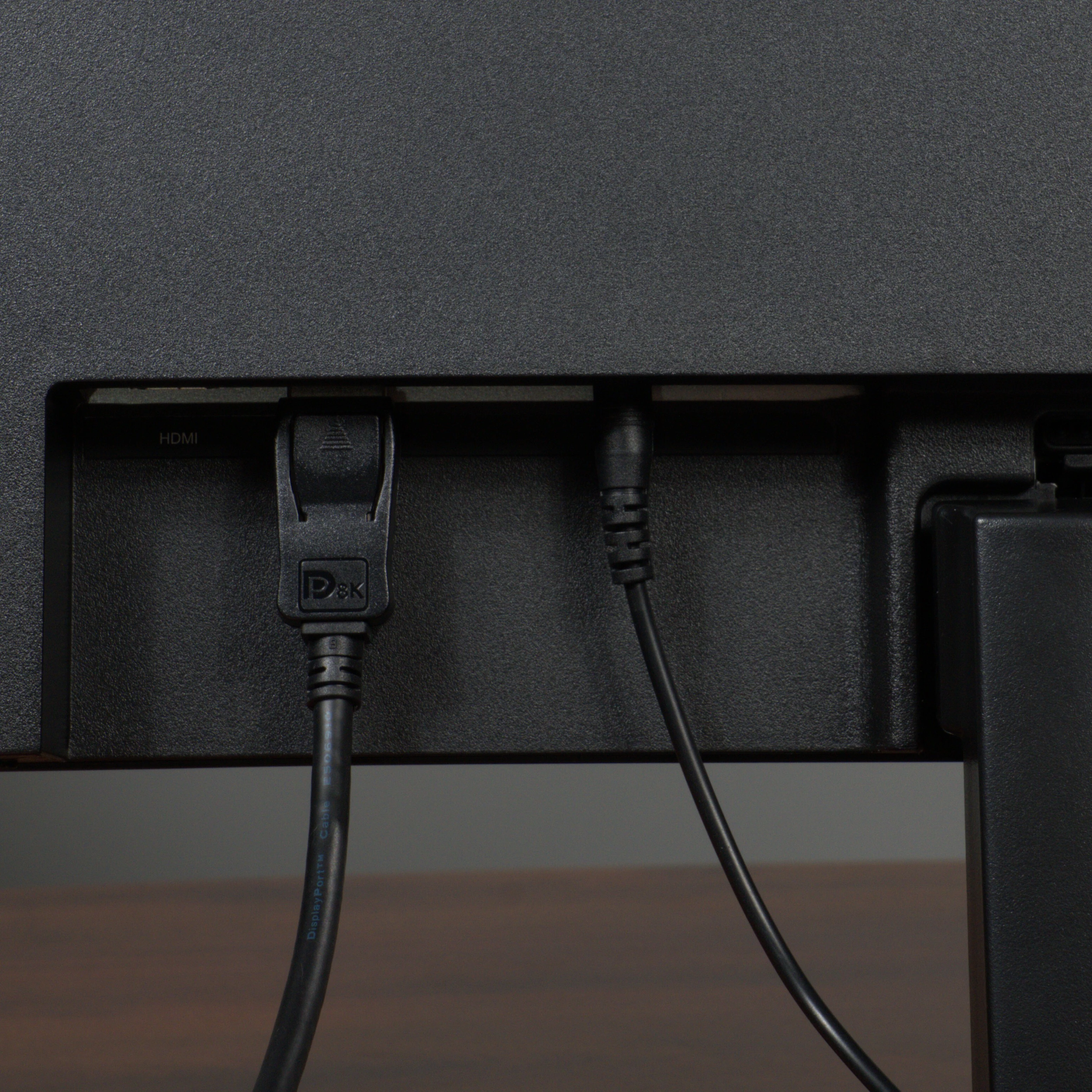

4. Connect the monitor's video and power cable to the back of the monitor and the power cable to an outlet.

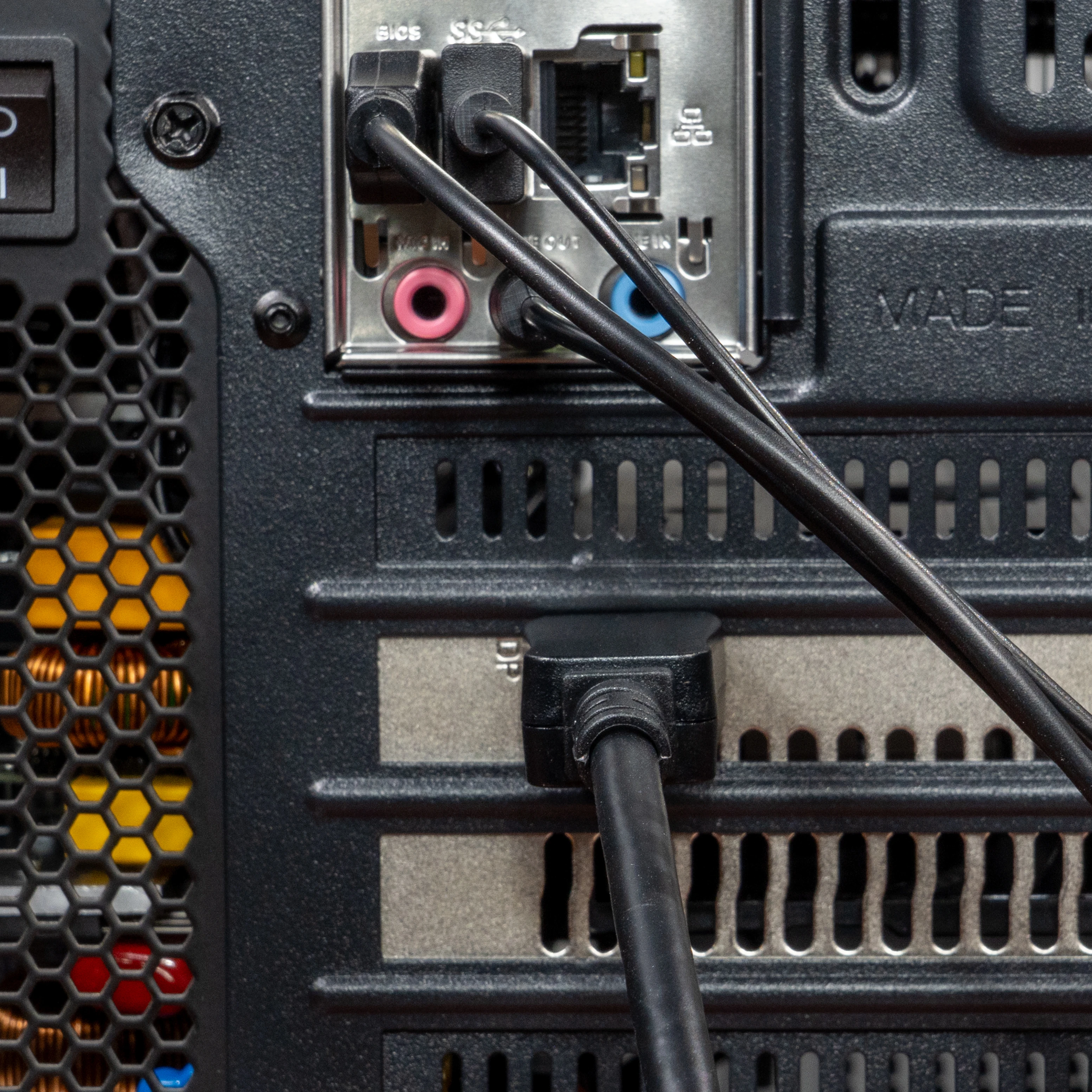

5. Connect the other end of the video cable to the GPU port.

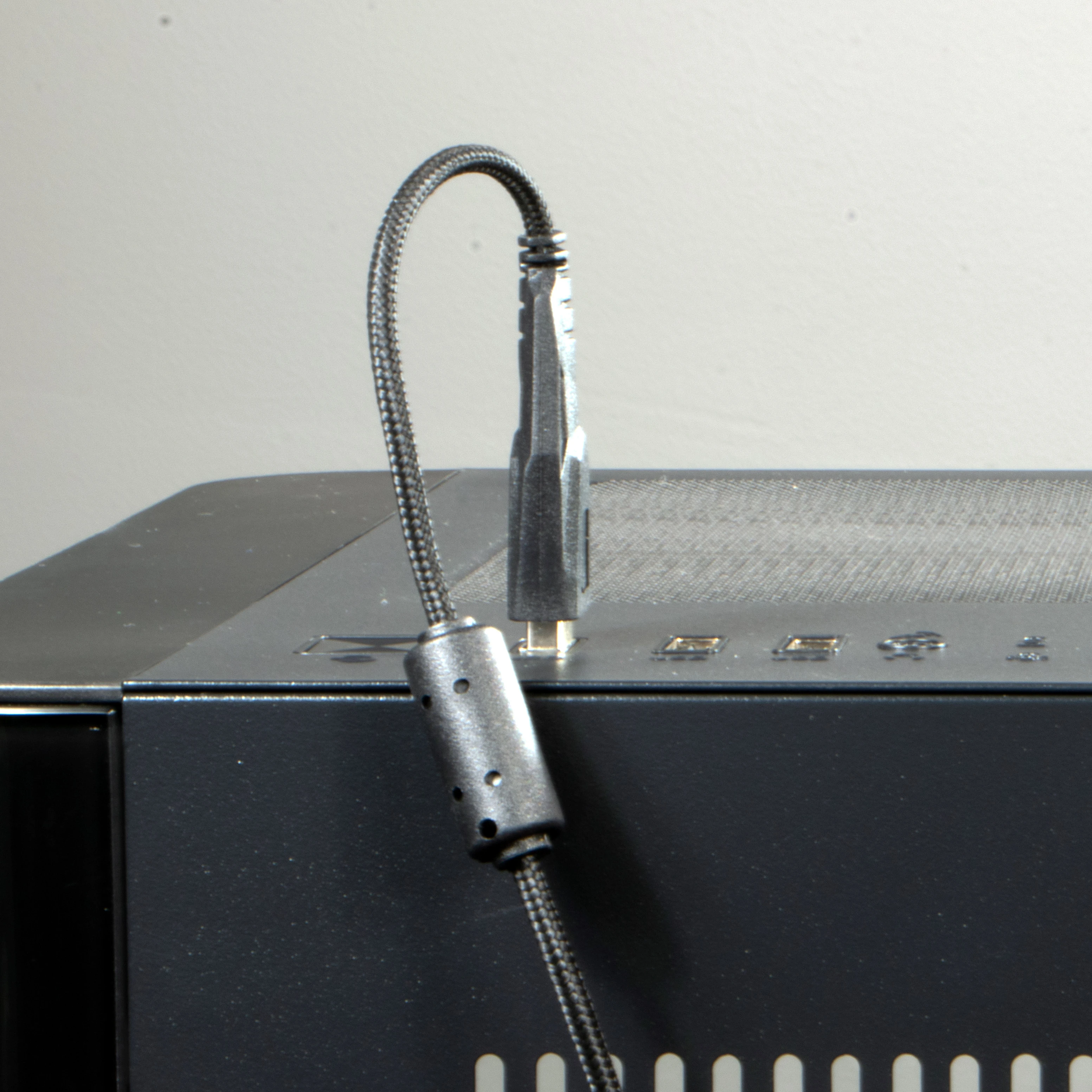

Periphio Atlas Front USB Ports with Mouse Cable

6. Plug the mouse cable into the PC's front USB 3.2 port.

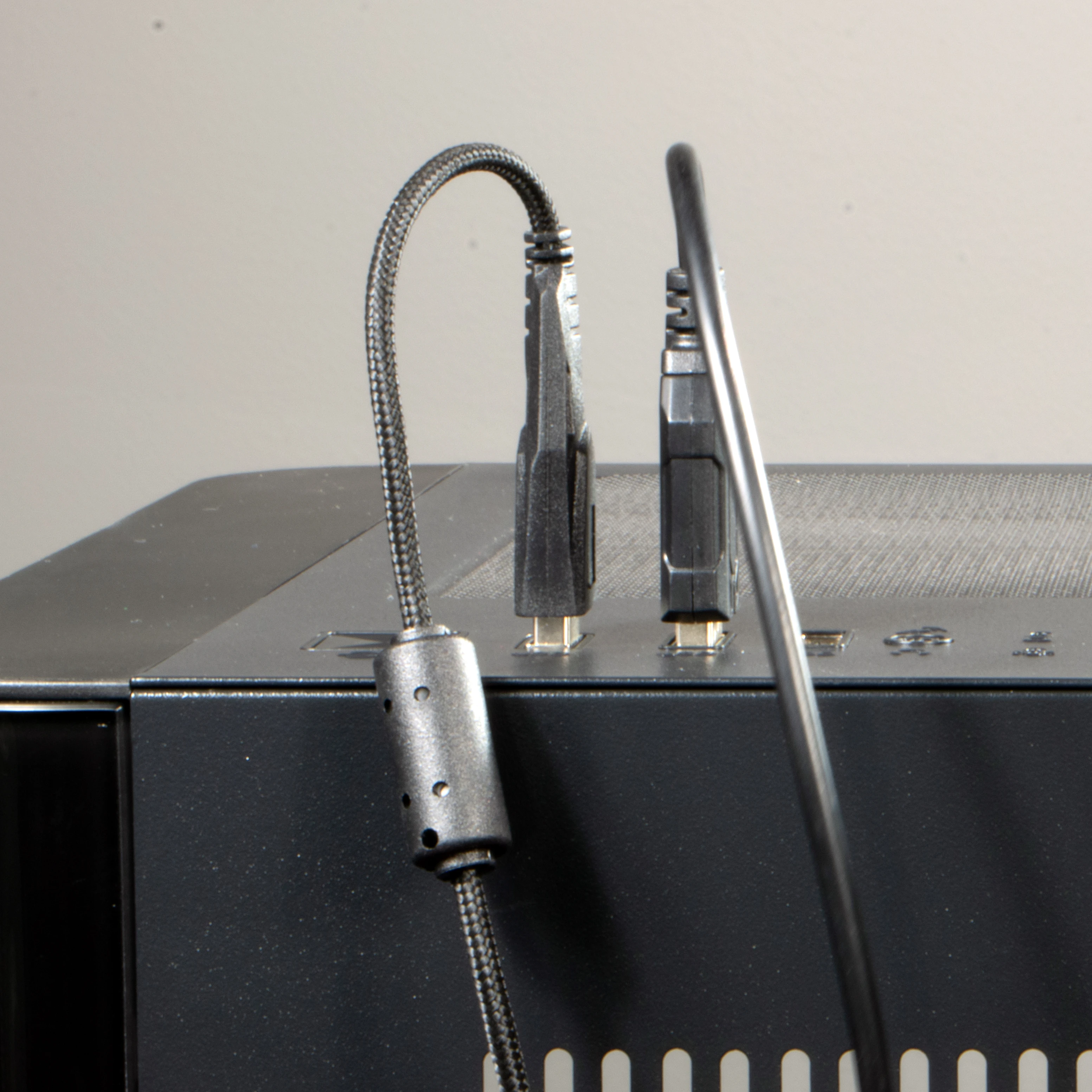

Periphio Atlas Front USB Ports with Mouse and Headset Cables

7. Plug the headset cable into the PC's front USB 2.0 port.

For more information and details about the best ports to use for specific accessories, click here to view our port diagram.click here to view our port diagram.

Step 3. Turn On Your Gaming PC

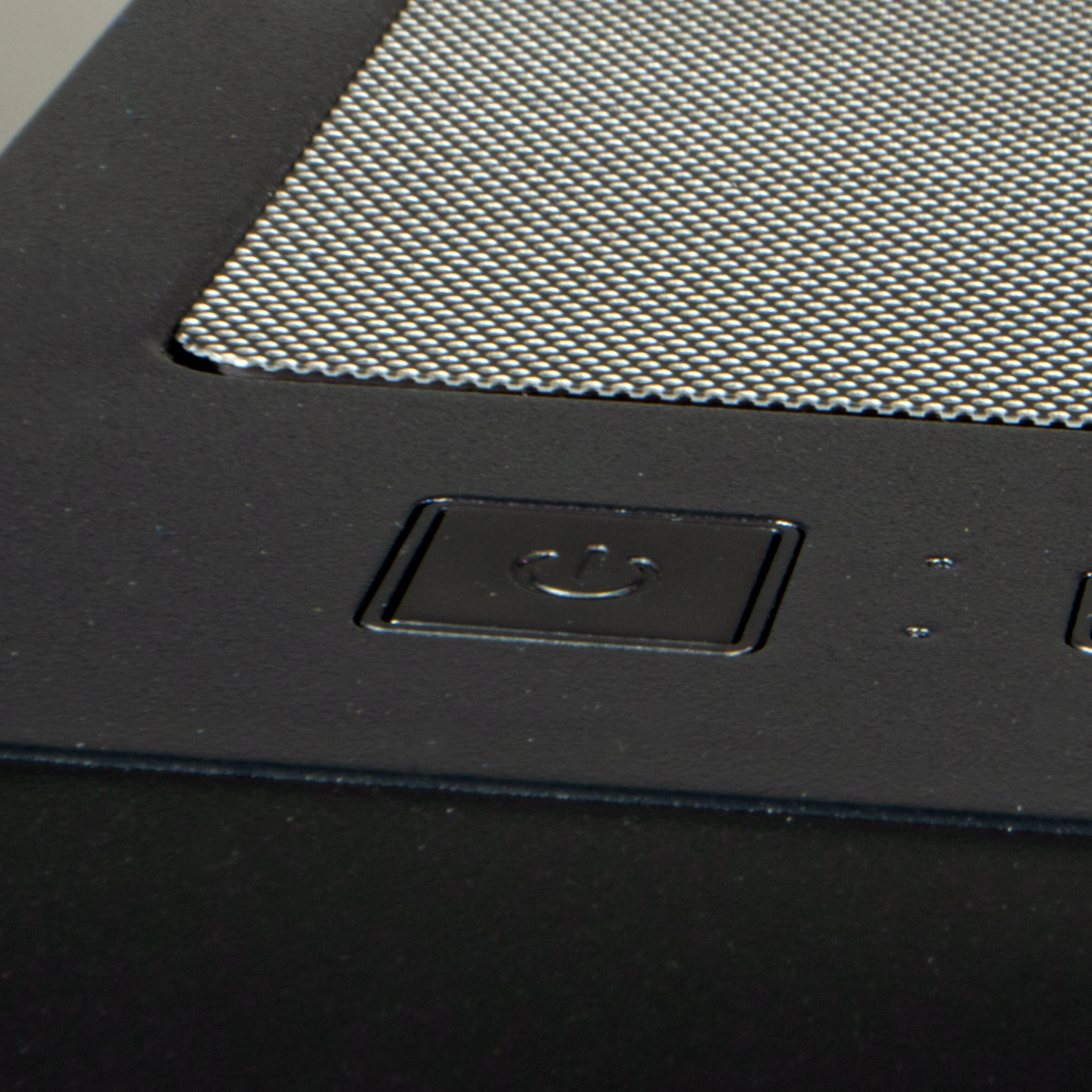

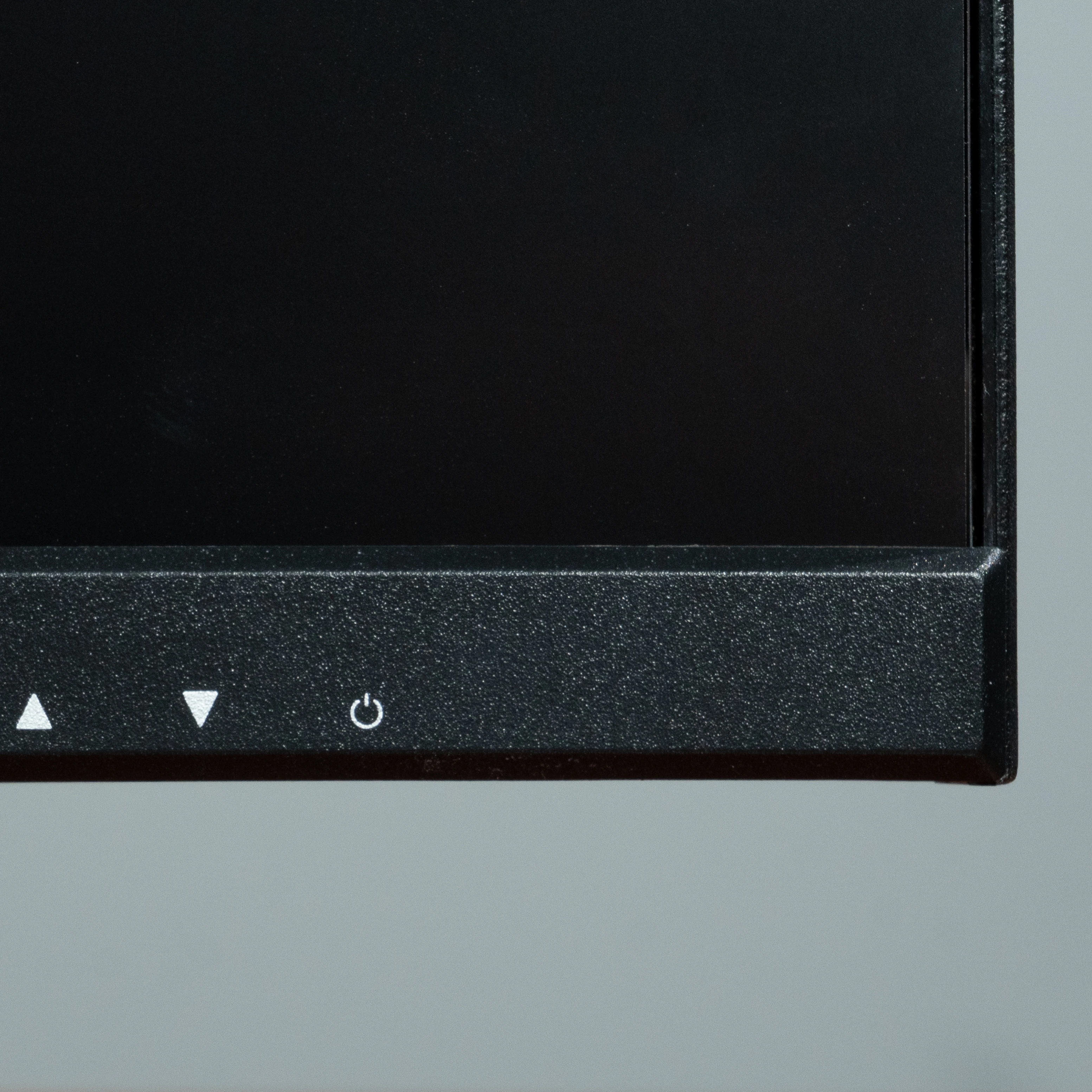

1. Press the power button on the monitor and the power button on the monitor.

2. Press the power button on the monitor and the power button on the computer.

Your screen should light up within a few seconds. Proceed with setting up Windows by following the on screen prompts.

First startup may take a minute — this is normal.

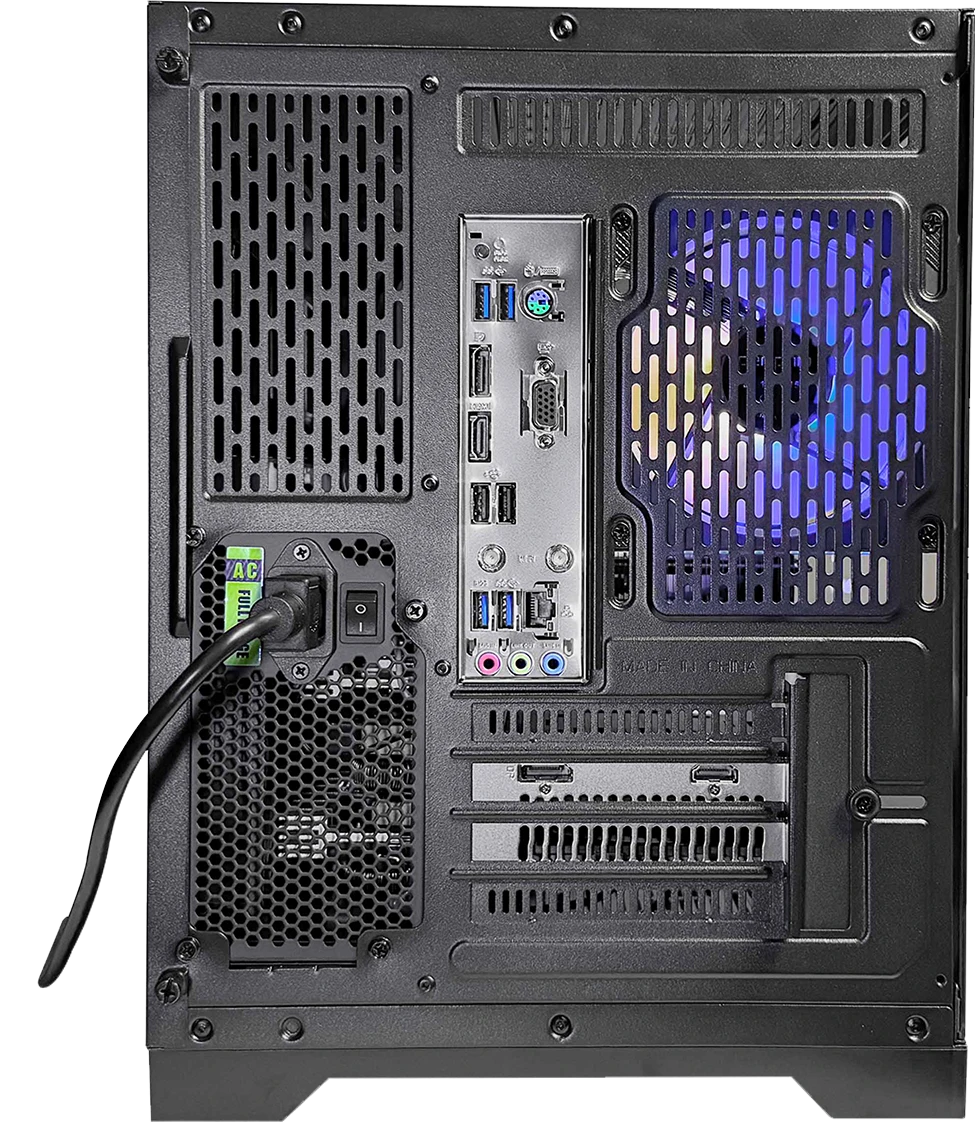

Where are the best places to connect my external devices to my Atlas Gaming PC?

BEST PORTS TO CONNECT:

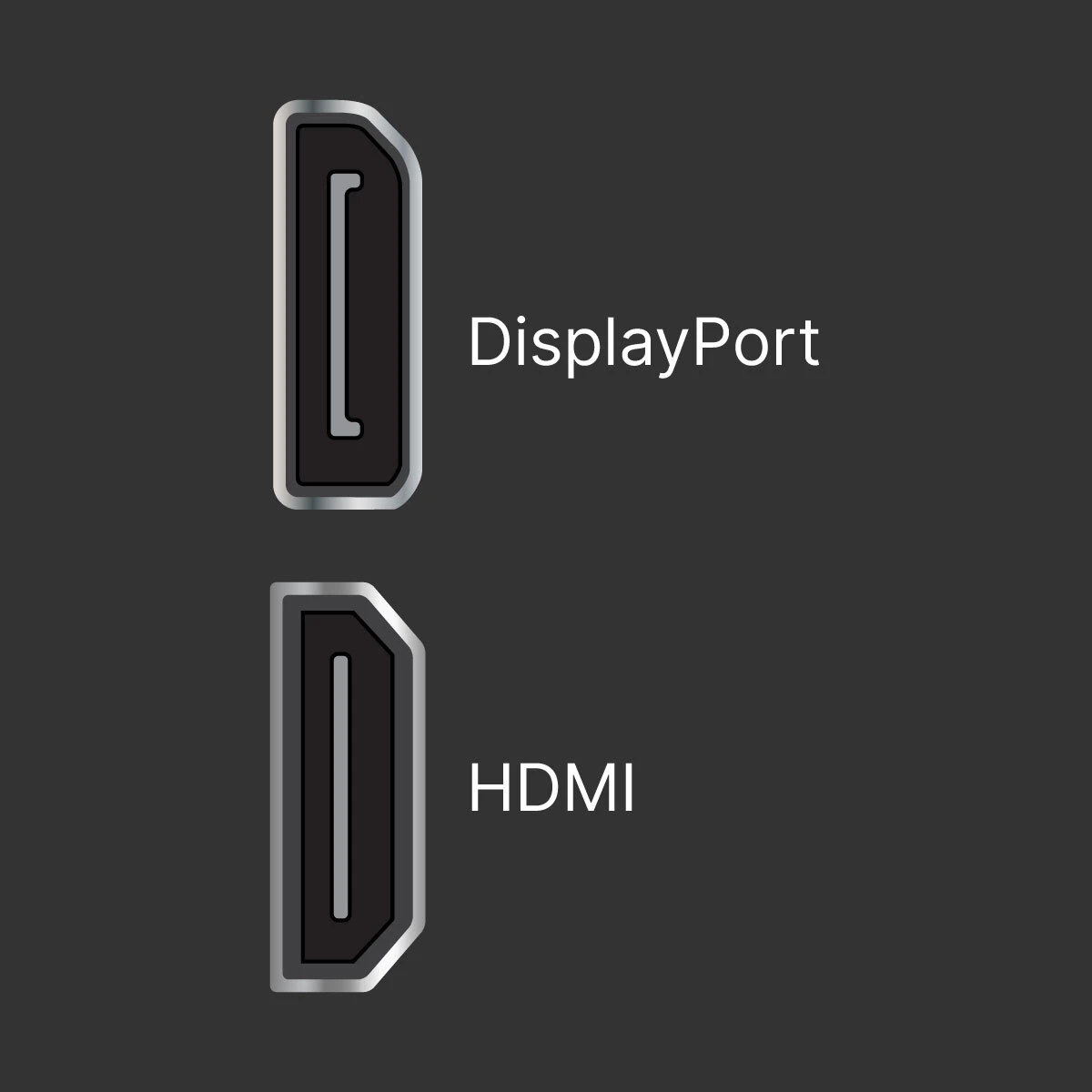

1. Monitors, TVs & Sound Systems

HDMI PORTS & DISPLAYPORTS

Connect monitors, TVs, and sound systems to transmit video and audio from your gaming PC.

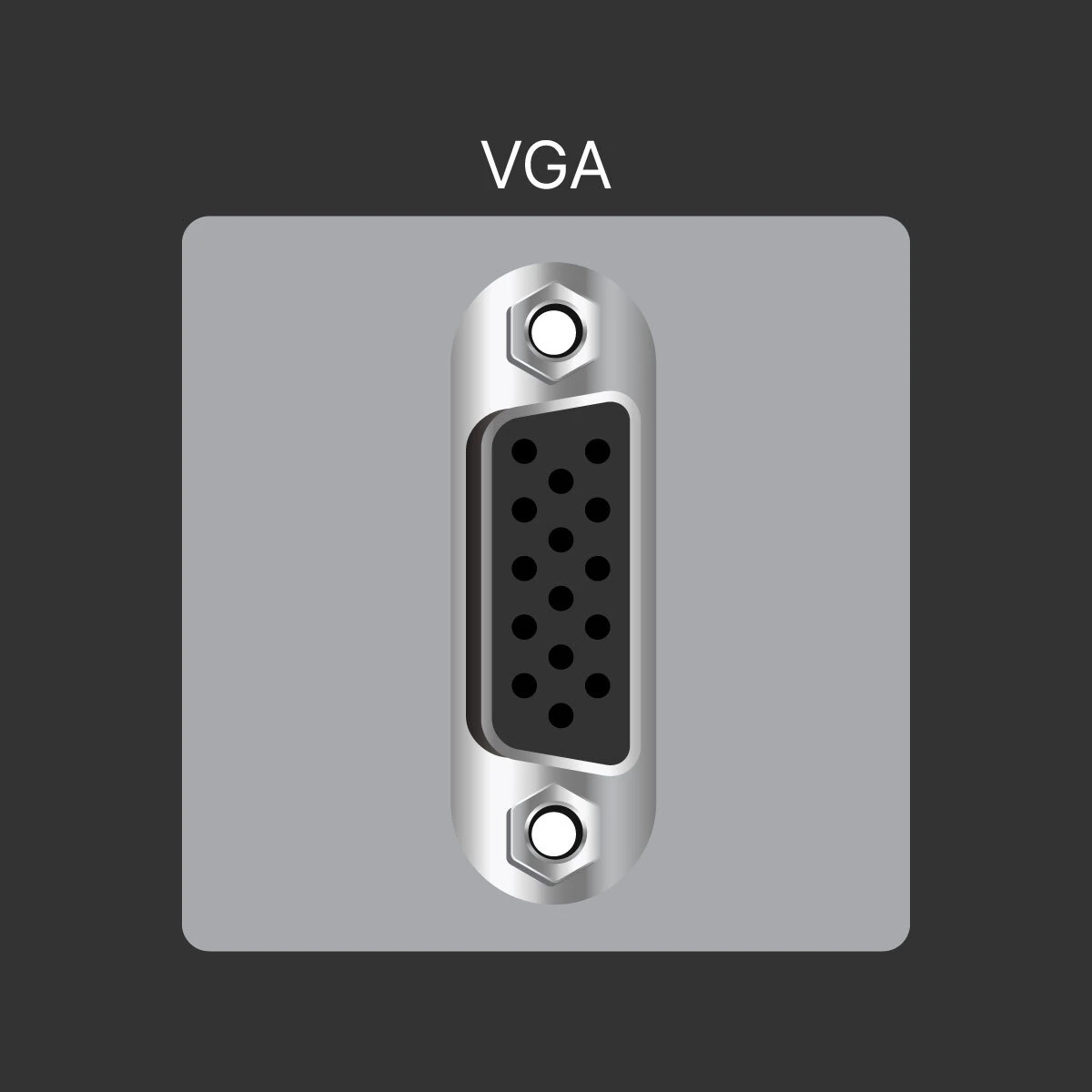

2. Projectors

VGA PORT

Connect older analog monitors or projectors to your gaming PC (good for retro gaming).

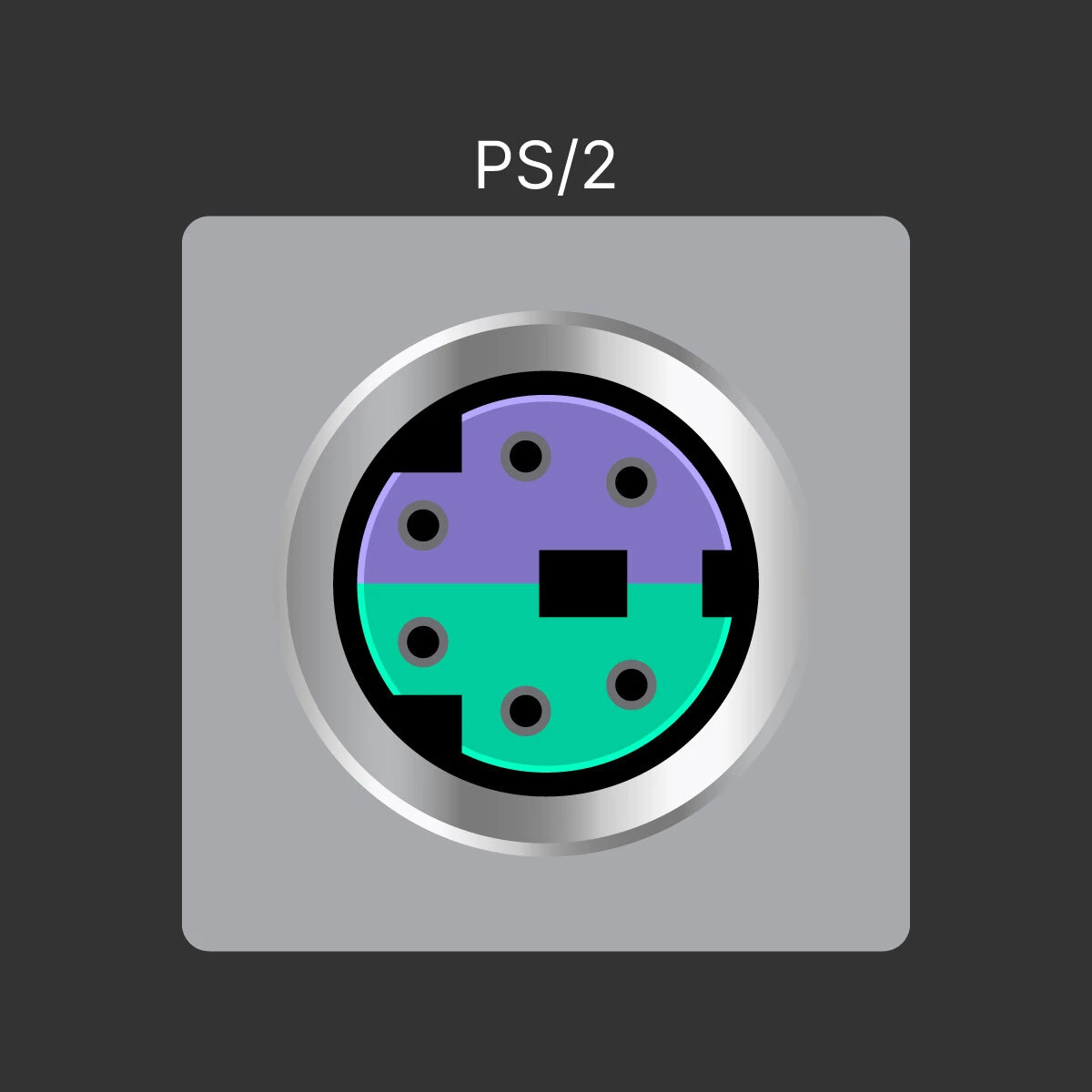

3. Keyboard & Mouse

PS/2 PORT

Use this port with compatible gaming keyboards and mice (good for gaming specific accessories).

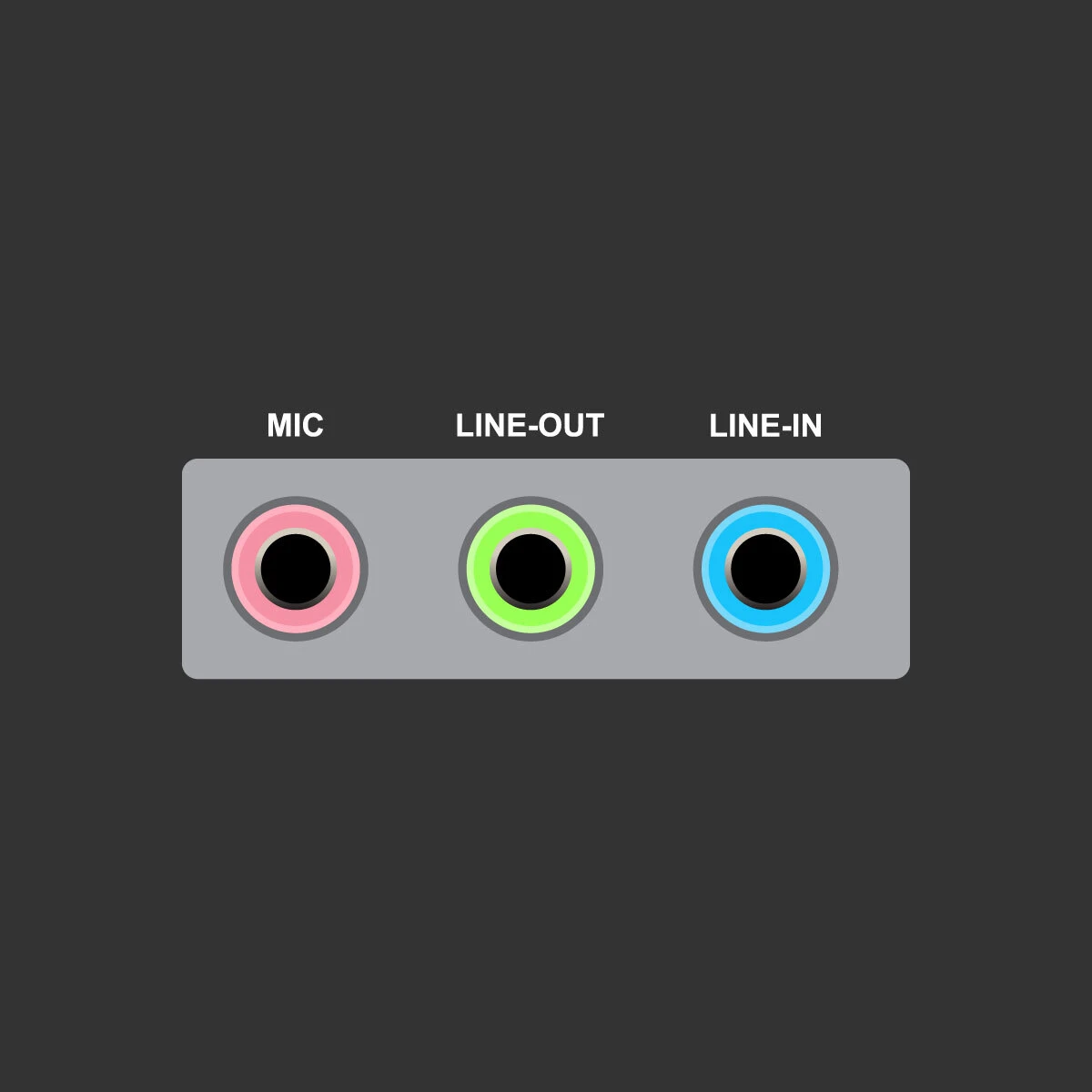

4. Headsets, Speakers & Microphones

AUDIO/VISUAL INPUT & OUTPUT PORTS

Connect headsets, speakers, microphones, sound systems, and video gear.

5. VR Headsets, Webcams & More

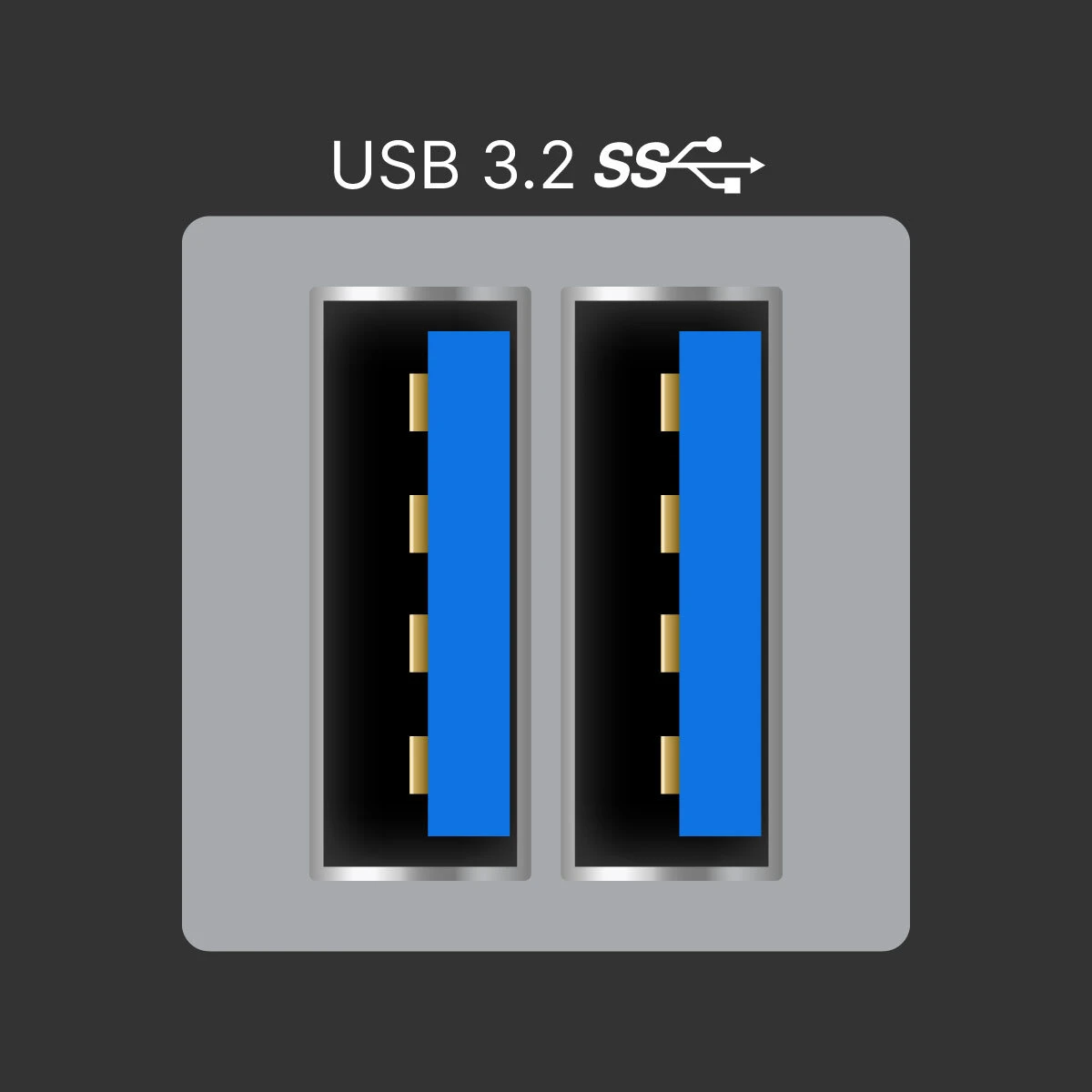

USB 3.2 PORTS

Connect VR headsets, webcams, gaming pads, flight or racing sticks, use external storage for gameplay or other files, and charge devices quickly.

6. Internet

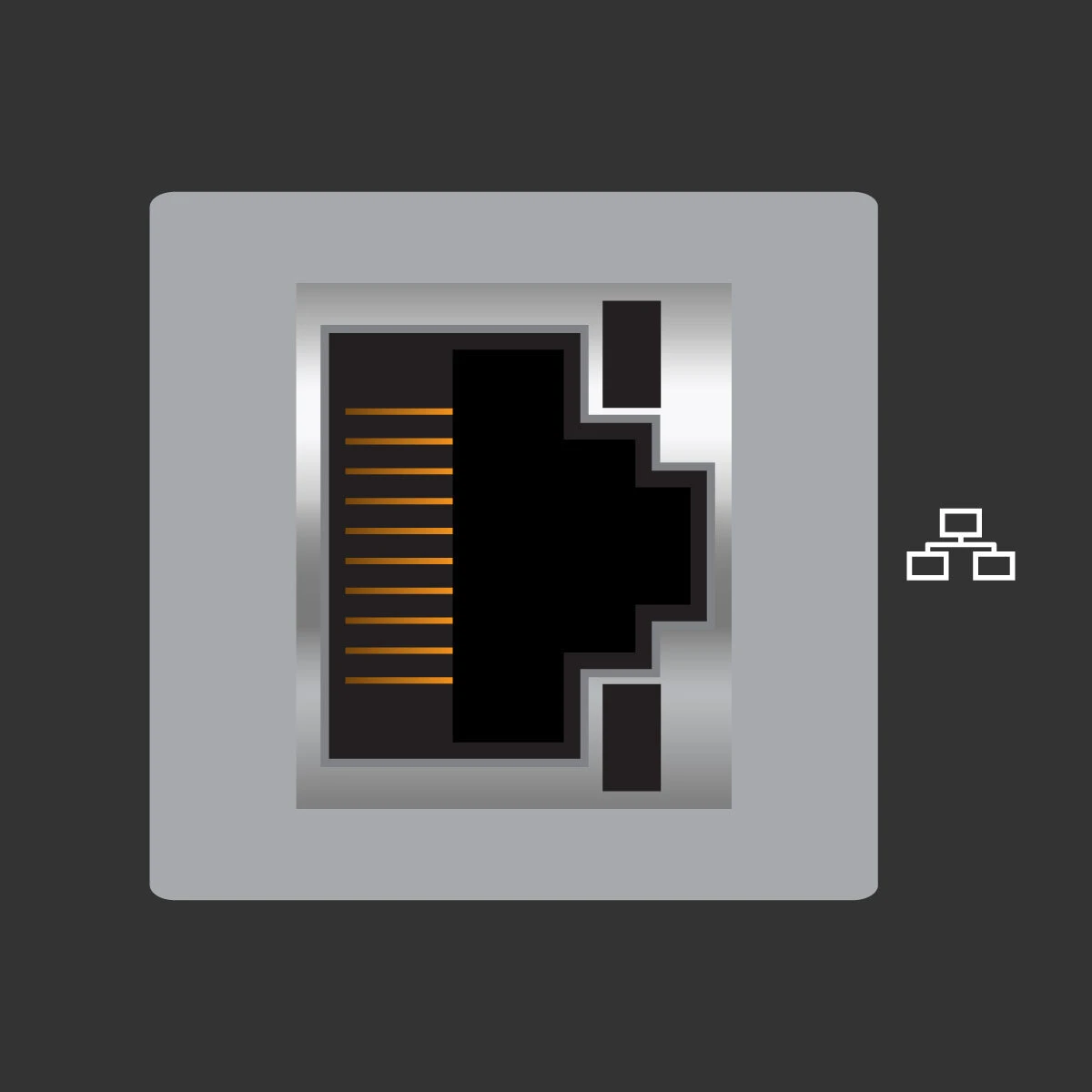

ETHERNET PORT

Connect your gaming PC directly to a router for the best Internet connection to have uninterrupted gameplay.

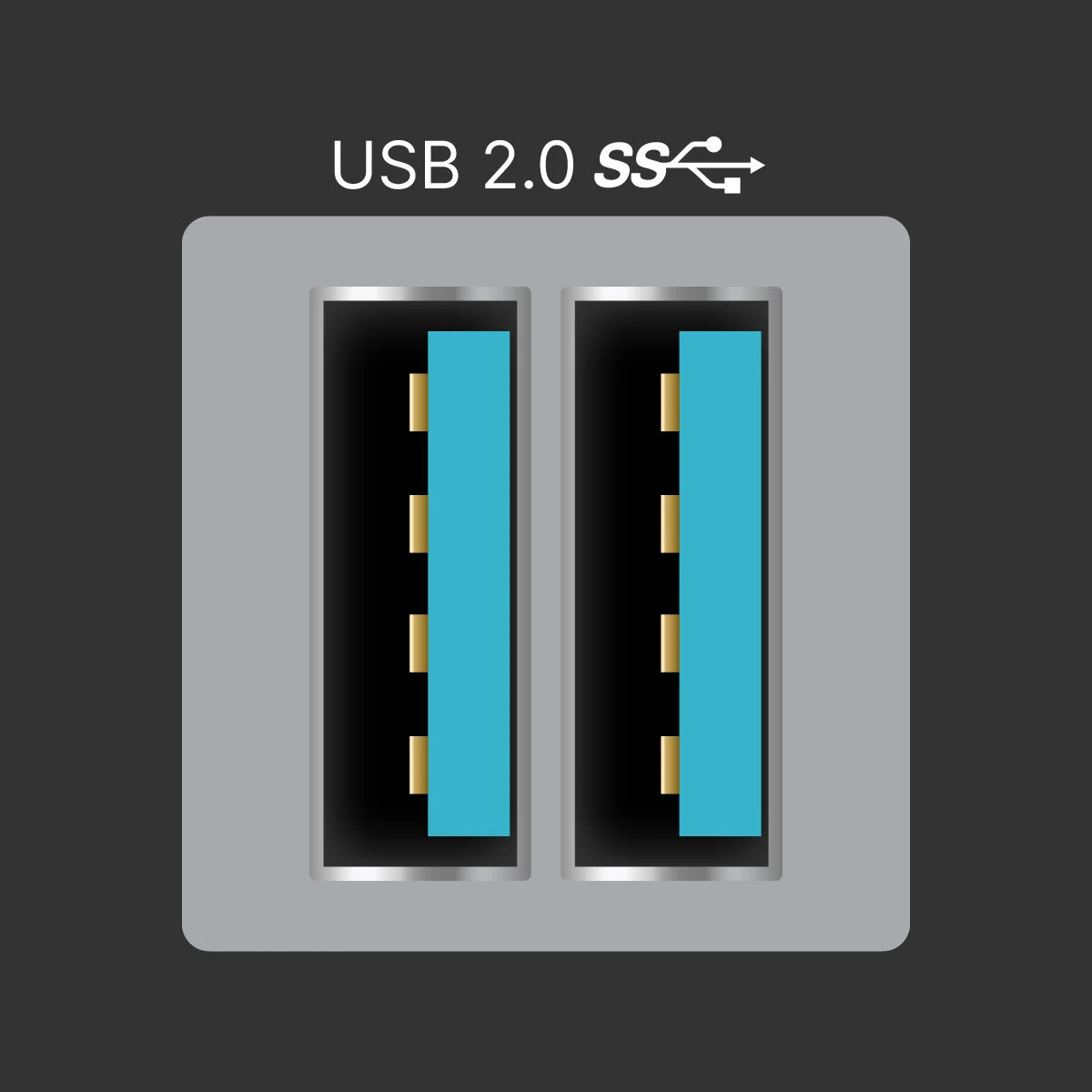

7. Other Accessories

USB 2.0 PORTS

Connect wired or wireless mice and keyboard, microphones, regular headsets, and charge devices.

HDMI Ports & DisplayPorts

Connect monitors, TVs, and sound systems to transmit video and audio from your Gaming PC.
